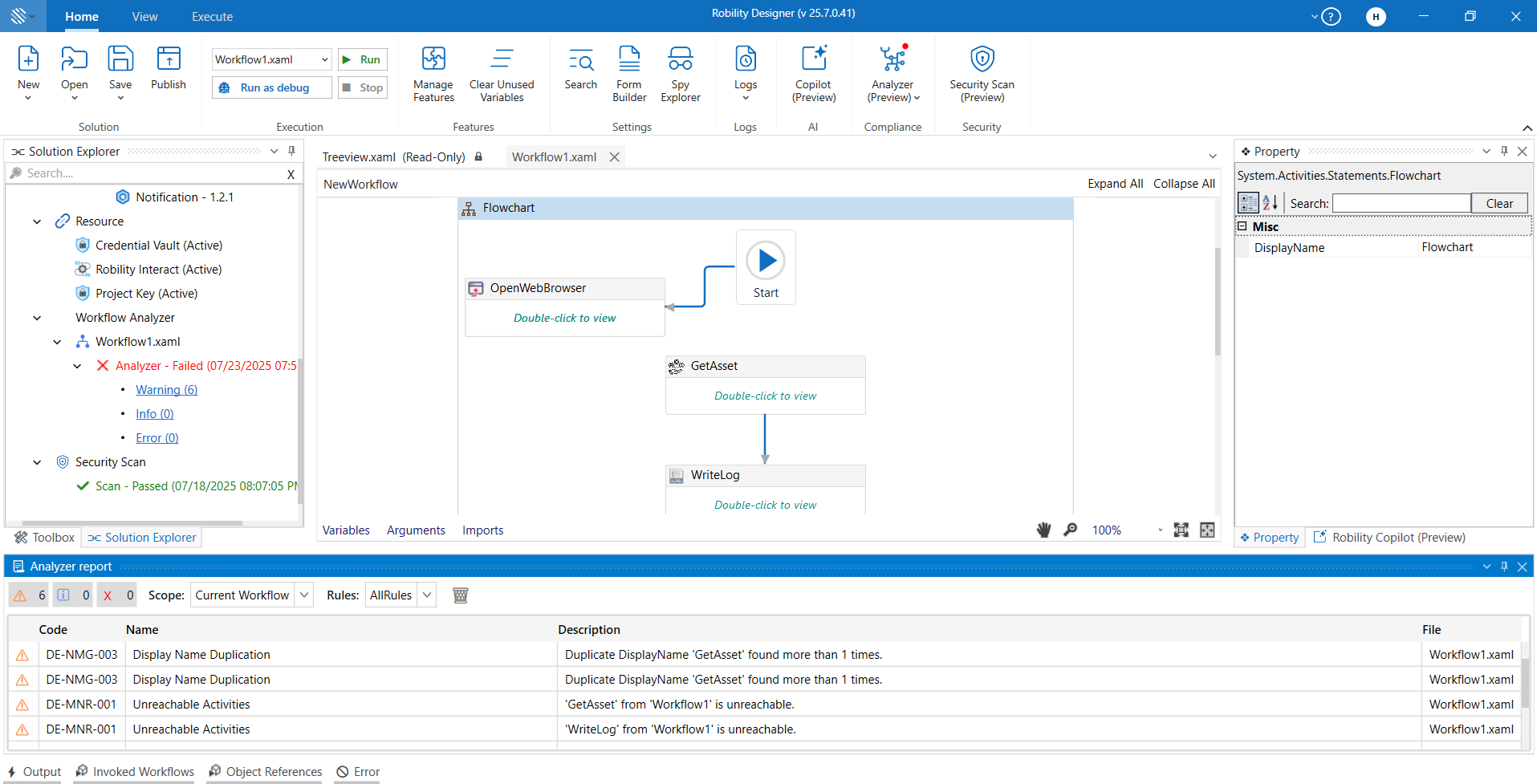

Analyzer Report

The Analyzer Report is automatically generated after the Workflow Analyzer completes its analysis of a workflow or solution. It provides a structured view of all detected rule violations, helping users quickly identify areas that need attention. Each entry in the report is broken down into key components:

Fields in the Analyzer Report:

Code: A unique identifier associated with each rule, allowing quick reference and tracking. For example, a rule for checking variable naming conventions may be labeled as DE-NMG-001.

Name: A short, descriptive title for the rule, such as “Display Name Duplication” or “Missing Annotation.”

Description: A detailed explanation of the rule, its importance, and the specific violation in the workflow. For example, if the rule involves naming conventions, the description will explain why a variable name doesn’t follow the required format (e.g., camelCase or prefix conventions).

File: Indicates the specific workflow file where the violation was found. This is useful in multi-workflow solutions, allowing users to quickly locate the file with the issue.
