Data Operations

Estimated reading: 5 minutes

The Data Operations component performs operations onDataobjects, including extracting, filtering, and editing keys and values in theData.For all options, see Available data operations. The output is a new Data object containing the modified data after running the selected operation.

Use the Data Operations component in a flow

The following example demonstrates how to use a Data Operations component in a flow using data from a webhook payload:

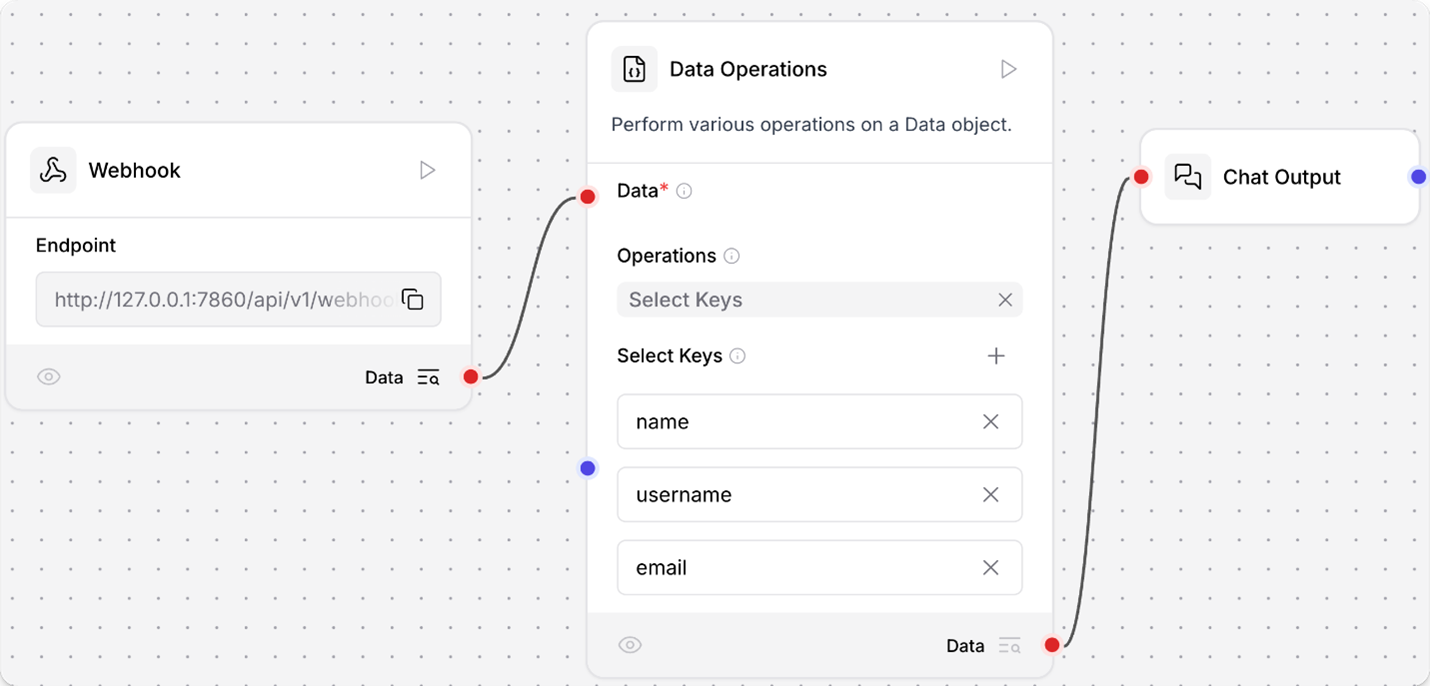

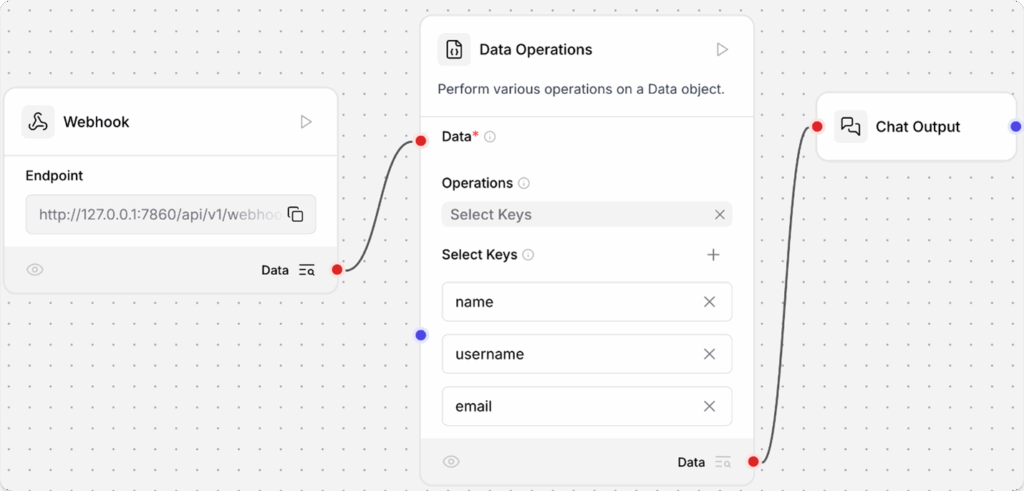

1. Create a flow with a Webhook component and a Data Operations component and then connect the Webhook component’s output to the Data Operations component’s Data input.

All operations in the Data Operations component require at least one Data input from another component. If the preceding component doesn’t produce Data output, you can use another component, such as theType Convert component, to reformat the data before passing it to the Data Operations component. Alternatively, you could consider using a component that is designed to process the original data type, such as the Parser component or DataFrame Operations component.

2. In the Operations field, select the operation you want to perform on the incoming Data. For this example, select the Select Keys operation.

Tip You can select only one operation. If you need to perform multiple operations on the data, you can chain multiple Data Operations components together to execute each operation in sequence. For more complex multi-step operations, consider using a component like the Smart Function component.

3. Under Select Keys, add keys for name, username, and email. Click Add more to add a field for each key.

For this example, assume that the webhook will receive consistent payloads that always contain name, username, and email keys. The Select Keys operation extracts the value of these keys from each incoming payload.

4. Optional: If you want to view the output in the Playground, connect the Data Operations component’s output to a Chat Output component.

5. To test the flow, send the following request to your flow’s webhook endpoint. For more information about the webhook endpoint, see Trigger flows with webhooks.


curl -X POST "http://$ROBILITYFLOW_SERVER_URL/api/v1/webhook/$FLOW_ID" \
  -H "Content-Type: application/json" \
  -H "x-api-key: $ROBILITYFLOW_API_KEY" \
  -d '{
    "id": 1,
    "name": "Leanne Graham",
    "username": "Bret",
    "email": "Sincere@april.biz",
    "address": {
      "street": "Main Street",
      "suite": "Apt. 556",
      "city": "Springfield",
      "zipcode": "92998-3874",
      "geo": {
        "lat": "-37.3159",
        "lng": "81.1496"
      }
    },
    "phone": "1-770-736-8031 x56442",
    "website": "hildegard.org",
    "company": {
      "name": "Acme-Corp",
      "catchPhrase": "Multi-layered client-server neural-net",
      "bs": "harness real-time e-markets"
    }
  }'

6. To view the Data resulting from the Select Keys operation, do one of the following:

a. If you attached a Chat Output component, open the Playground to see the result as a chat message.
b. Click Inspect output on the Data Operations component.

Data Operations Parameters

Many parameters are conditional based on the selected Operation (operation).

Name	Display Name	Info
data	Data	Input parameter. The Data object to operate on.
operation	Operation	Input parameter. The operation to perform on the data. See Available data operations.
select_keys_input	Select Keys	Input parameter. A list of keys to select from the data.
filter_key	Filter Key	Input parameter. The key to filter by.
operator	Comparison Operator	Input parameter. The operator to apply for comparing values.
filter_values	Filter Values	Input parameter. A list of values to filter by.
append_update_data	Append or Update	Input parameter. The data to append or update the existing data with.
remove_keys_input	Remove Keys	Input parameter. A list of keys to remove from the data.
rename_keys_input	Rename Keys	Input parameter. A list of keys to rename in the data.
mapped_json_display	JSON to Map	Input parameter. JSON structure to explore for path selection. Only applies to the Path Selection operation. For more information, see Path Selection operation examples .
selected_key	Select Path	Input parameter. The JSON path expression to extract values. Only applies to the Path Selection operation. For more information, see Path Selection operation examples .
query	JQ Expression	Input parameter. The jq expression for advanced JSON filtering and transformation. Only applies to the JQ Expression operation. For more information, see JQ Expression operation examples .

Available data operations

Options for the operation input parameter are as follows. All operations act on an incoming Data object.

Name	Required Inputs	Process
Select Keys	select_keys_input	Selects specific keys from the data.
Literal Eval	None	Evaluates string values as Python literals.
Combine	None	Combines multiple data objects into one.
Filter Values	filter_key, filter_values, operator	Filters data based on key-value pair.
Append or Update	append_update_data	Adds or updates key-value pairs.
Remove Keys	remove_keys_input	Removes specified keys from the data.
Rename Keys	rename_keys_input	Renames keys in the data.
Path Selection	mapped_json_display, selected_key	Extracts values from nested JSON structures using path expressions.
JQ Expression	query	Performs advanced JSON queries using jq syntax for filtering, projections, and transformations.

Path Selection operation examples

Use the Path Selection operation to extract values from nested JSON structures with dot notation paths.

1. In the Operations dropdown, select Path Selection.
2. In the JSON to Map field, enter your JSON structure.

This example uses the following JSON structure.


{
  "user": {
    "profile": {
      "name": "John Doe",
      "email": "john@example.com"
    },
    "settings": {
      "theme": "dark"
    }
  }
}

The Select Path dropdown auto-populates with available paths.

3. In the Select Paths dropdown, select the path. You can select paths such as.user.profile.nameto extract “John Doe”, or select.user.settings.themeto extract “dark”.

JQ Expression operation example

Use the JQ Expressions operation to use the jq query language to perform more advanced JSON filtering.

1. In the Operations dropdown, select JQ Expression.
2. In the JQ Expression field, enter ajqfilter to query against the Data Operations component’s Data input.

For this example JSON structure, enter expressions like.user.profile.nameto extract “John Doe”,.user.profile | {name, email}to project fields to a new object, or.user.profile | to stringto convert the field to a string.


{
  "user": {
    "profile": {
      "name": "John Doe",
      "email": "john@example.com"
    },
    "settings": {
      "theme": "dark"
    }
  }
}
