Split Text

Estimated reading: 3 minutes

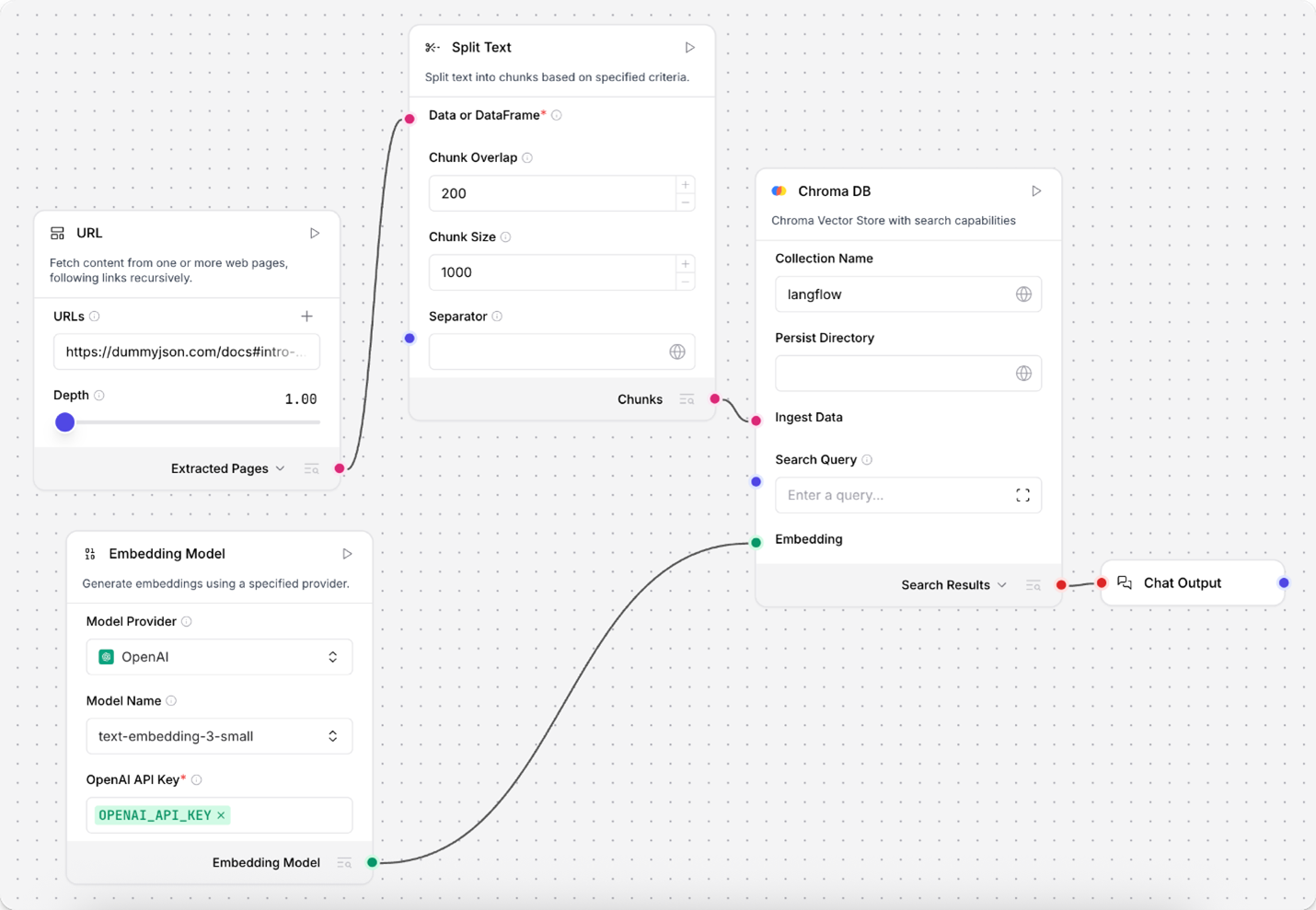

The Split Text component splits data into chunks based on parameters like chunk size and separator. It is often used to chunk data to be tokenized and embedded into vector databases. For examples, see Use Vector Store components in a flow, Use Embedding Model components in a flow, and Create a Vector RAG chatbot.

The component accepts Message, Data, or DataFrame, and then outputs either Chunks or DataFrame. The Chunks output returns a list of Data objects containing individual text chunks. The DataFrame output returns the list of chunks as a structured DataFrame with additional text and metadata columns.

Split Text parameters

The Split Text component’s parameters control how the text is split into chunks, specifically the chunk_size, chunk_overlap, and separator parameters.

To test the chunking behavior, add a Text Input or File component with some sample data to chunk, click Run component on the Split Text component, and then click Inspect output to view the list of chunks and their metadata. The text column contains the actual text chunks created from your chunking settings. If the chunks aren’t split as you expect, adjust the parameters, rerun the component, and then inspect the new output.

Some Split Text component input parameters are hidden by default in the visual editor. You can toggle parameters through the Controls in the component’s header menu.

Name	Display Name	Info
data_inputs	Input	Input parameter. The data to split. Input must be in Message, Data, or DataFrame format.
chunk_overlap	Chunk Overlap	Input parameter. The number of characters overlap between chunks. This helps maintain context across chunks. When a separator is encountered, the overlap is applied at the point of the separator so that the subsequent chunk contains the last n characters of the preceding chunk. Default: 200.
chunk_size	Chunk Size	Input parameter. The target length for each chunk after splitting. The data is first split by separator and then chunks smaller than the chunk_size are merged up to this limit. However, if the initial separator split produces any chunks larger than the chunk_size, those chunks are neither further subdivided nor combined with any smaller chunks; these chunks will be output as-is even though they exceed the chunk_size. Default: 1000.
separator	Separator	Input parameter. A string defining a character to split on, such as \n to split on new line characters, \n\n to split at paragraph breaks, or }, to split at the end of JSON objects. You can directly provide the separator string or pass a separator string from another component as Message input.
text_key	Text Key	Input parameter. The key to use for the text column is extracted from the input and then split. Default: text.
keep_separator	Keep Separator	Input parameter. Select how to handle separators in output chunks. If False, separators are omitted from output chunks. Options include False (remove separators), True (keep separators in chunks without preference for placement), Start (place separators at the beginning of chunks), or End (place separators at the end of chunks). Default: False.
